Electric Tightening Module

Torque range: 0.3~35Nm

The Electric Tightening Module uses electric drive to replace the traditional integrated tightening tool, enabling the automatic tightening process of screws. It can monitor all elements of the tightening process and is highly compatible with various special working conditions and product height differences.

Request a Quote

Product advantages

Whole process monitoring

? PLC is used for information interaction to realize all-factor interactive control and real-time monitoring (speed,displacement, torque, pressure and time)；

? Combined with intelligent screw driver, real-time monitoring of abnormal tightening conditions such as floating screws, sliding teeth, missing and so on can avoid the outflow of defective products.

High precision control

? Accurate control of downforce: no impact during tightening to avoid screw thread damage;

? Flexible control of avoidance height: the screw suction tube can stop at any position within the travel range, with a wide range of compatibility.

High efficiency tightening

? Servo electric drive control, compared with the traditional module, the screw feeding speed is increased by 20%.

Green and energy saving

? The pneumatic components are reduced, the air consumption is reduced by24%, and the normal Vacuum module only needs the vacuum air and brake air provided by the customer, which contributes to the energy saving and emission reduction of the factory.

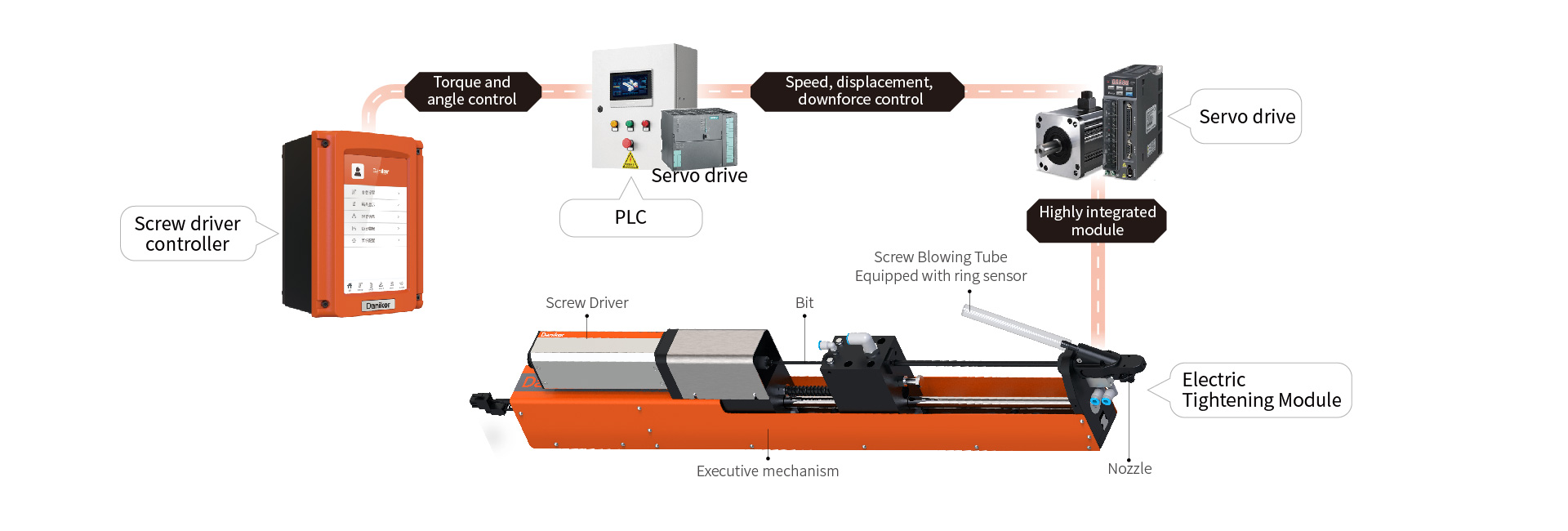

Product Structure

Releated Cases

New Energy Vehicle Industry

Integrate clean feeding technology, intelligent tightening technology, <br/>digital and intelligent software system to accompany every step of <br/>intelligent assembly upgrade of new energy vehicle industry.

Automotive?Industry

It covers the assembly application scenarios of various parts and components, and drives the intelligent assembly of automobile manufacturing industry to achieve high-quality and high-efficiency development.

Energy?Storage?Industry

Focus on the innovation of automatic feeding and intelligent tightening technology to ensure the safety and stability of energy storage products.

Communications?Industry

Through automatic assembly equipment, reduce manual intervention, ensure the accuracy of production and assembly, and improve the quality and efficiency of production and assembly of communication products.

3C?Electronics?Industry

Focus on building a "flexible intelligence +" technology innovation system to promote the intelligent transformation and upgrading of 3C electronic assembly.
